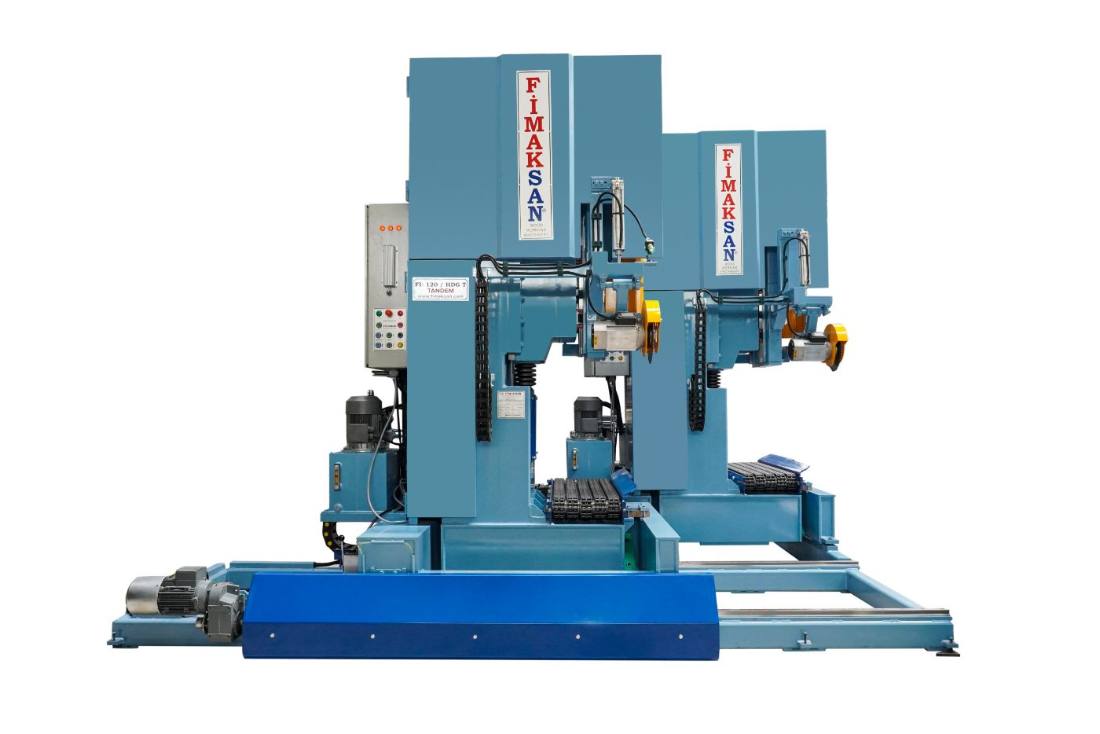

FI.120 HYDRAULIC – TANDEM BAND SAW
Technical Specifications
| Flywheel Diameter | 1200mm (47.2 in) |
|---|---|
| Flywheel Width | 140mm (5.5 in) |
| Max. Log Cutting Height | 1150mm (45.3 in) |
| Max. Cut Width | 640mm (25.2 in) |
700mm
Technical Specifications
| Cutting Height min | 20mm (0.8 in) |
|---|---|
| Main Motor | 45 kW / 60 hp / 1400 rpm |
| Sawblade Tensioning | Hydraulic |
| Sawblade Guide Adjustment | Hydraulic |
| Upper & Lower Bearings | SKF – C3 |
| Max. Strip Length | 140 X 1.2 X 9300 mm (5.5 x 0.0 x 366.1 in) |
| Min. Strip Length | 140 X 1.2 X 8850 mm (5.5 x 0.0 x 348.4 in) |
| Sawblade Lubrication System | Automatic with Push Button |
| Lubrication of the Bearings | Manual with a grease pump |
| Electric Panel (Star-Delta) | Included. First class Material. Mounted |
| Belt Drive Pulley System | Mounted Flender type the pulleys |
| Body Structure | Steel construction |
| Movement Tandem System | Linear slides and linear screw system |
| Positioning Tandem Bandsaw | PLC Control Panel. Colour Touch Screen |
| Weigth | 10 000 kg (0 lb). ( Mobile: 5500 kg (12,125 lb) Fixed: 4500 kg (9,921 lb) ) |
| Dimensions (L x W x H) | 343 x 185 x 320 cm (135.0 x 72.8 x 126.0 in) (Length Width Height) |
| Dimensions / Moving body (L x W x H) | 163 x 470 x 320 cm (64.2 x 185.0 x 126.0 in) (Length Width Height) |
Features
- Tandem strip (double logging saw) is called the system that emerges with the synchronized operation of two separate strip looms one after the other.
- When the logs loaded on the cutting cart come to tandem saws automatically, two planks / boards are cut in one go due to the 2 band saws adjusted in different sizes. Different cutting sizes can be adjusted at once.
- The first Bandsaw, which is close to the operator, can be position inward or outward. Meanwhile second band saw is in fixed position.
- 60 hp. The flywheel scrapers and the fueling system of the motor-driven strips are made from the operator's cabin with a remote control. The system has been designed according to universal working conditions. Optionally, it has the opportunity to work without tandem.
- Band saw according to the capacity demand of the company; Flywheel Diameter can be produced in different sizes as 100”/120”/140“.
- The strips are suitable and safe for cutting large diameter logs due to their ergonomic design. (saw body distance: 64 cm)
- The daily lumber processing capacity in the carriage + single band system increases by 90% when the ”Tandem" system is preferred. “Tandem band" pays for itself economically in a short time without operating costs, area and additional personnel expenses.
- Daily log processing capacity with the carriage+ single bandsaw system increases by 90% when the “Tandem bandsaw” system is installed and nearly doubles. The “tandem bandsaw” pays for itself economically in a short time, without operating costs, area, and additional worker costs.
