- FI. 100 / UHKD 3 LOG CARRIAGE
- REMOTE-CONTROLLED
- TOUCH SCREEN
- FULL AUTOMATIC
- MEDIUM TYPE
- 3 MONOBLOCK HEADBLOCKS
- AUTOMATIC LUBRICATION
- IN & OUT MOVING HOOKS
- HEAT TREATED HEADBLOCK GUIDEWAYS AGAINST WEAR
- DOUBLE ROW LOG TURNER CHAIN x 3
Technical Specifications
| Headblock Opening | 850mm (33.5 in) |
|---|---|
| Hook Opening | 760 mm (29.9 in) |
| Hook In & Out Distance from Knee | Min: 35 mm (1.4 in) Max: 140 mm (5.5 in) |
| Headblock Spacing | 1150 –2100mm (82.7 in) |
| Hydraulic Unit | 7.5 kW |
| Carriage Feed Motor | 11 kW |
| Rail Length | 15000mm (590.6 in) |
| Rail Width | 1260mm (49.6 in) |
| Hydraulic Unit | 7.5 kW |
| Weight | 4000 kg (8,818 lb) |

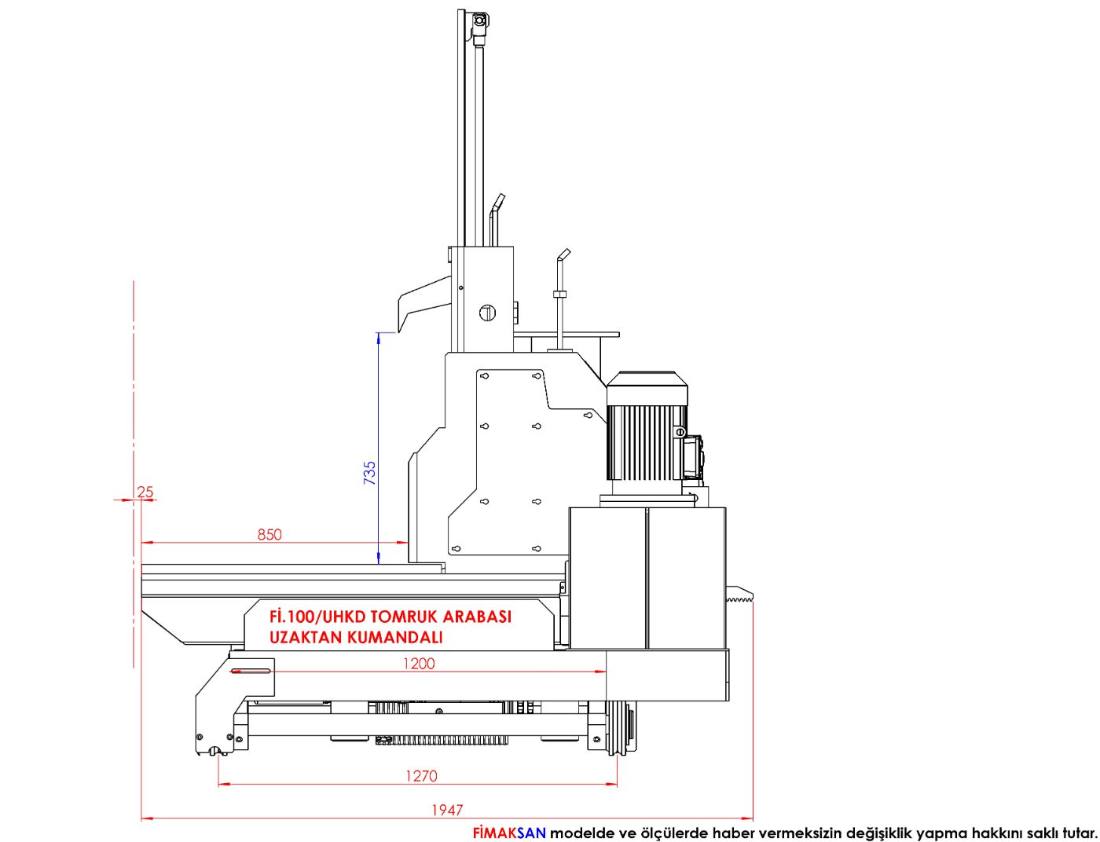

| Dimensions | 500 x 210 x 200 cm (196.9 x 82.7 x 78.7 in) (Length Width Height) |
Features

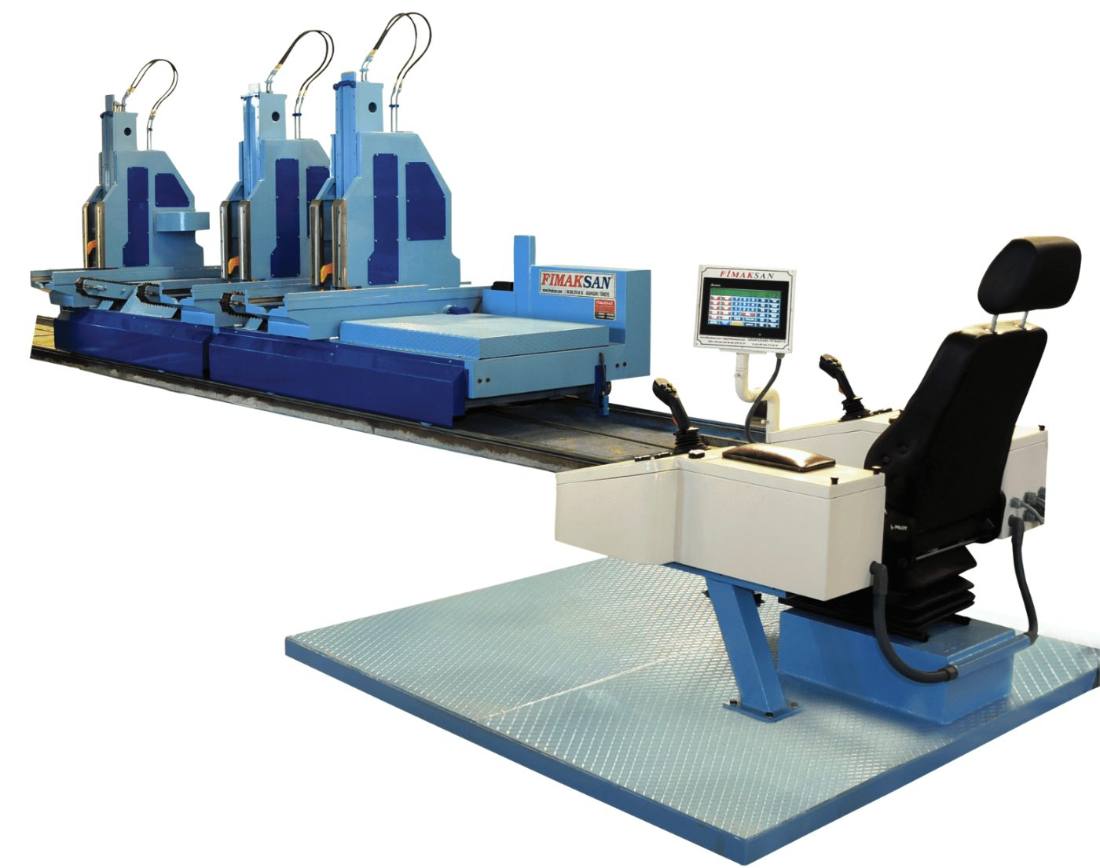

- Developed by FIMAKSAN, the Color Touch screen provides positioning speed and ease of use with 10 adjustable preset sizes in the memory.
- Carriage Drive is long life electrodynamic system and steel wire rope, cable driven. 120m /min feed speed is standard. (More Optional)
- The drive of the headblok is provided by a 7.5 kW gearmotor, 290 mm/sec. movement speed is standard.
- Turning of logs is provided by a 2.2kW geared motor. It is easily provided by the hydraulic system with a 7.5 kW motor for the log turners to lift the log.
- Hooks are hydraulic driven with solenoid valve control. Maximum log control is provided.
- Thanks to the fixed knee and movable hooks system, the distance between the knee and the hook can be adjusted according to different log sizes (min.: 35 mm- max.: 140 mm). Hooks In & Out can be operated independently. It's a standard feature.
- The Control Panel is easily controlled with 2 joysticks and buttons, which are ergonomic and very simple to use. With the pedal, log rotation can be done easily also.
- The connection between the carriage and the control panel is achieved by an opening-closing, pantograph type cable carrying arm.
- Heat Induction treated guideways are long-lasting against wear.
- Log Beds has replaceable wear plates that prevent the log from damaging the guideways.
- The machine has a timed automatic lubrication system on guideways, hooks bedding, heablock shaft bronze bushing and on mechanism that moves hook in & out . (Reduces the friction of guideways and headblocks which plays a very important for the machine long working life span.)
- The carriage structure has produced as heavy duty type to serve for many years without wear.
