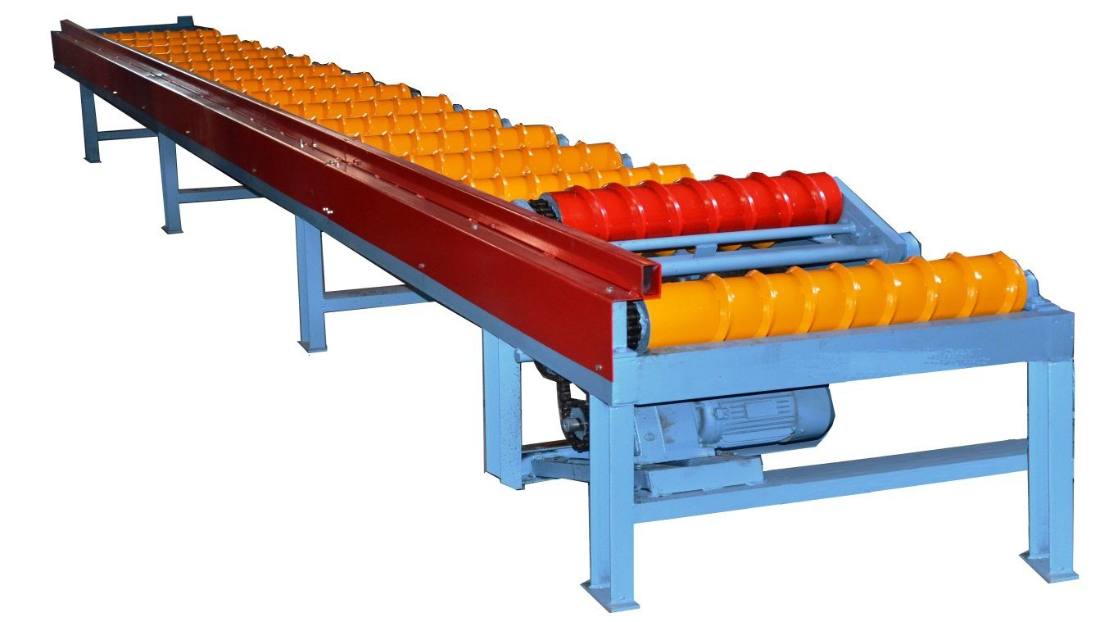

LONG TIP DRIVE
– WITH STOPPER
– 7 meters
Technical Specifications
| Longitudinal Plank Carrier System | Helical pulley system |
|---|---|
| Drive Type | Chain-gear system |
| Conveying Speed | 0-50 m/min. |
| Main Engine | 1.5 kW |
| Shipment Type | mounted |
| Stopper Reel Movement | Connected to the same chain-gear system |
| Stopper Up Movement | with pneumatic cylinder |
| Weight | 1100 Kg (2,425 lb) |
| Dimensions | 700 X 100 X 75 cm (275.6 x 39.4 x 29.5 in) (Length Width Height) |
