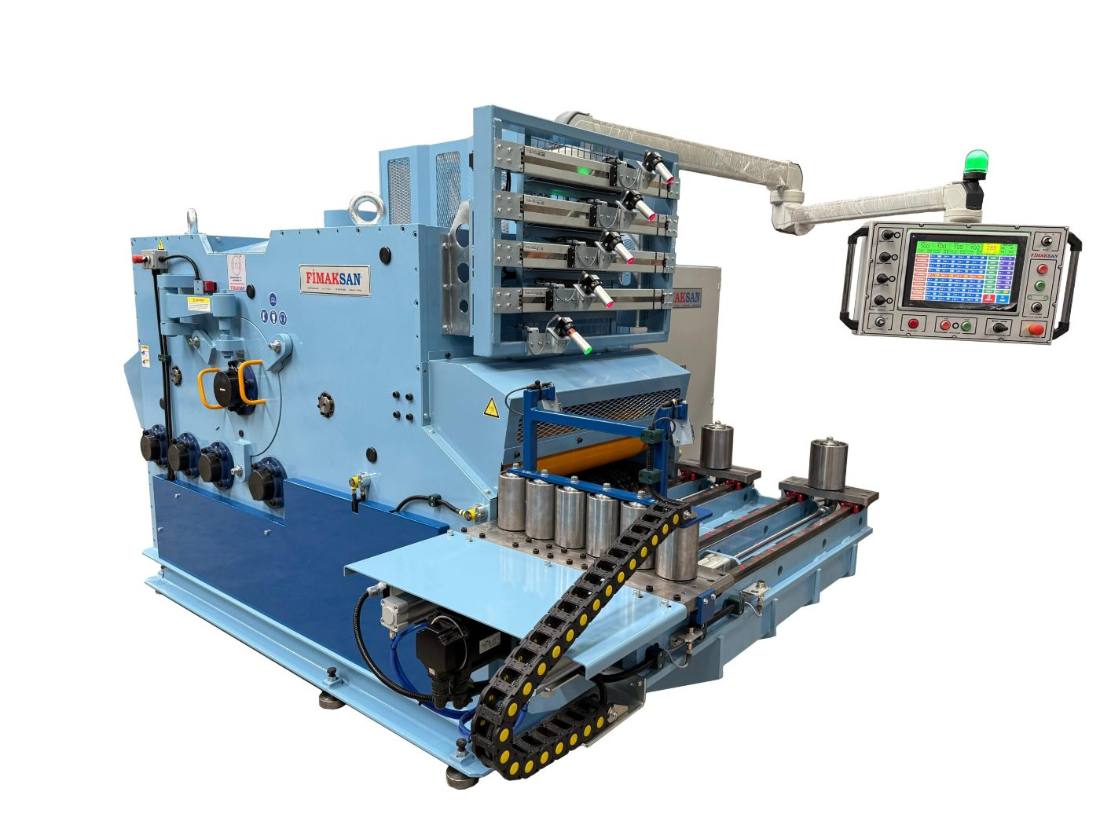

FI.150 ADM – 3 Fixed + 4 Movable Saws – MULTI-RIP SAW + EDGER – Servo technology – min. 19 mm
Pallet sharp chain feed, more precise cut. Servo motor technology for saw positioning - better performance with equally positioning force.
Technical Specifications
| Max Height | 151 mm (5.9 in) |
|---|---|
| Max Width | 800 mm (31.5 in) |
| Max working Width | 1000 mm (39.4 in) |
| Min. distance between movable blades | 19 mm (0.7 in) * |
| Circular Saw Diameter | 530 mm (20.9 in) |
| Feed Speed | 10 m – 105 m |
| Main Motor | 90 kW (120 HP) / 2240 rpm |
| Weight/ Dimensions ( E x B x Y) | 7300 kg (16,094 lb) / 240 cm (94.5 in) x 265 cm (104.3 in) x 220 cm (86.6 in) |
Advantages
- 12'' Touch screen
- There are 10 set sizes and editable timber package sizes in memory. In order to produce lumber from the plank to be ripped, the desired package size can be easily called and the cutting can be done easily.
- SCANNER OPTIMIZATION - WORK MODE WITHOUT OPERATOR.
